IP67 Photoelectric Sensors 12-24V DC Output With Anti Interference Design

Brand Name:	KRONZ
Model Number:	BQ22-G200P
MOQ:	5 pieces
Price:	Negotiable
Packaging Details:	Paper box packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Mounting Type:

Nut Fixing

Description:

Photoelectric Sensor, Photoelectric Sensor

Theory:

Red LED

Output:

12-24V DC

Setting Range:

40-200mm

Reaction Time:

Max.1ms

Power Indicator:

Green LED

Ambient Humidity:

35~85%RH,storage:-35~85%RH

Supply Ability:

100000 pieces per month

Highlight:

IP67 Photoelectric Sensors

,

Photoelectric Sensors 24V DC

,

Anti Interference Photoelectric Sensors

Product Description

IP67 Photoelectric Sensors 12-24V DC Output With Anti Interference Design

Product Specifications

Attribute	Value
Mounting Type	Nut fixing
Description	Photoelectric Sensor
Theory	Red LED
Output	12-24V DC
Setting range	40-200mm
Reaction time	Max.1ms
Power indicator	Green LED
Ambient humidity	35~85%RH, storage: -35~85%RH

Key Features

Not affected by the target color and background color interference
Precisely detect objects with high accuracy
Small differential distance for detecting tiny segment differences
Anti-interference design with easy installation
IP67 protective structure for durability

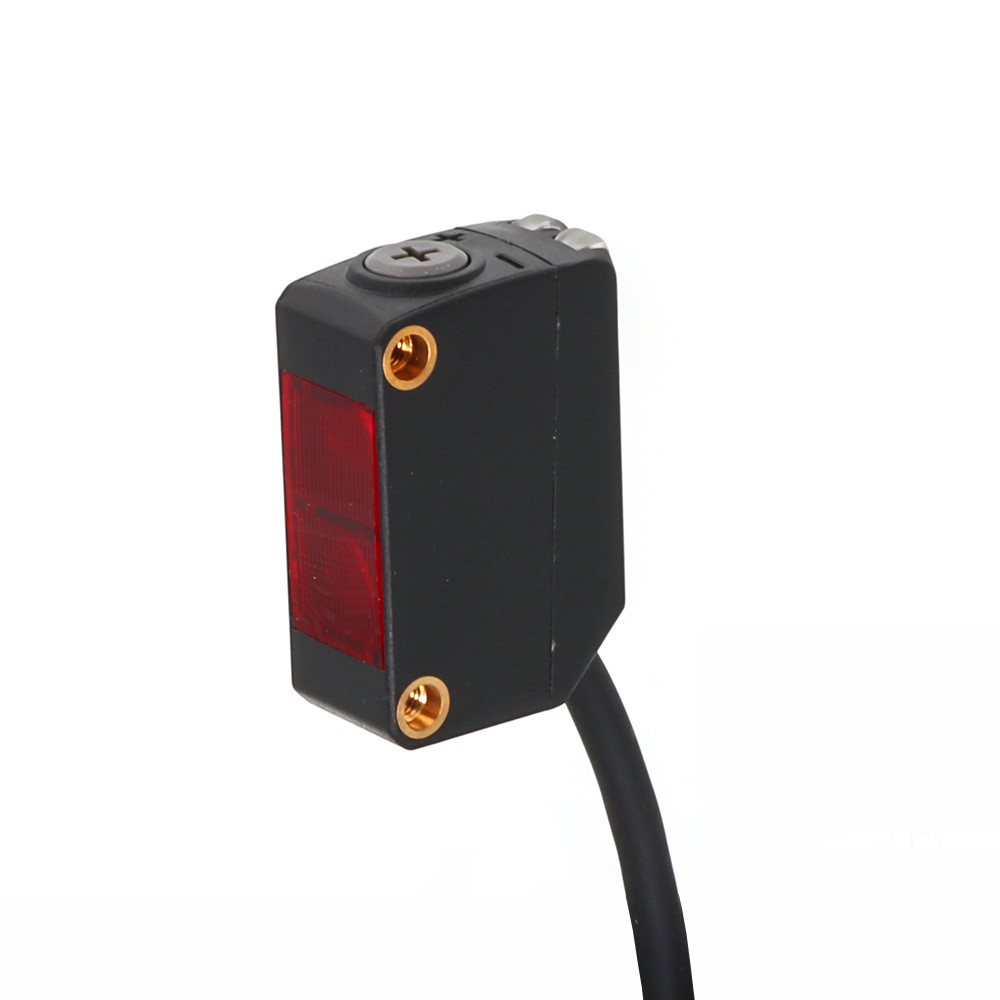

IP67 Photoelectric Sensors 12-24V DC Output With Anti Interference Design 0

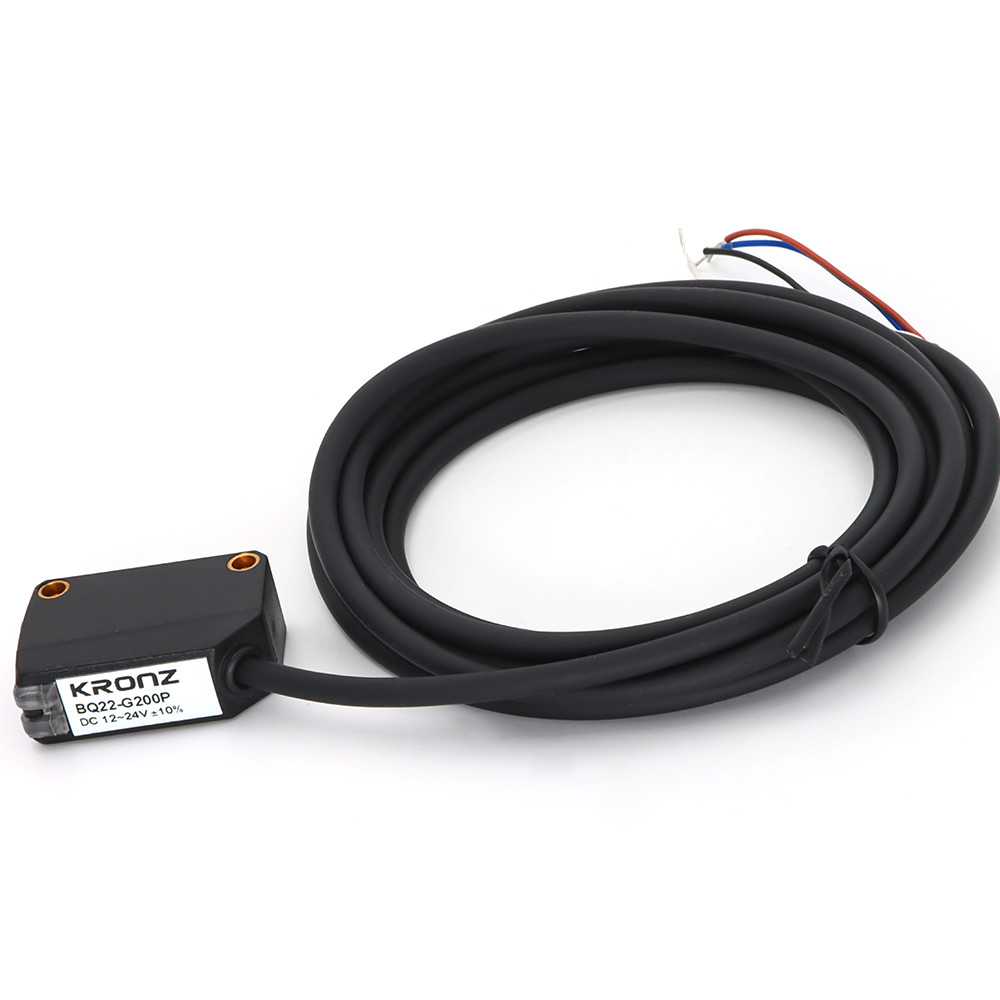

IP67 Photoelectric Sensors 12-24V DC Output With Anti Interference Design 1

Technical Specifications

Setting range	40-200mm
Detect the distance (white matte paper)	20-300mm
Deviation	Below 2% of the rated detection distance
Spot dimension	110mm6mm(distance 200mm); 60mm6mm(distance 100mm); 35*5mm(distance 50mm)
Consuming current	Below 25mA
Control output	Light ON/Dark Equip with two outputs
Light source	Red LED (Light projection peak wavelength: 650nm, modulation type)
Short circuit protection	Yes
Reaction time	Max.1ms
Working indicator	Red LED (output light on)
Power indicator	Green LED
IP Level	IP67
Ambient Temperature	-25 ~ +55 °C (no freezing), storage: -30 °C ~ +70 °C (no freezing)
Ambient humidity	35~85%RH, storage: -35~85%RH
Ambient illuminance	Incandescent lamp: illumination degree of light receiving surface is below 3000lx
Withstand voltage	AC1000V 1min between all power connection terminals and enclosure
Insulation resistance	All power connection terminals and enclosure, more than 20MΩ, based on dc250v meggar
Vibration Resistance	10-500HZ amplitude 3mm(MAX.50G) X,Y and Z each 2 hours
Anti vibration	Acceleration 500m/s²(50G), each 2 hours for X,Y,Z axis
Spot diameter	φ20mm (distance 300mm)
Cast Light Element	Shell: PC

Product Dimensions

IP67 Photoelectric Sensors 12-24V DC Output With Anti Interference Design 2

Connection Diagram

IP67 Photoelectric Sensors 12-24V DC Output With Anti Interference Design 3

IP67 Photoelectric Sensors 12-24V DC Output With Anti Interference Design 4

IP67 Photoelectric Sensors 12-24V DC Output With Anti Interference Design 5

IP67 Photoelectric Sensors 12-24V DC Output With Anti Interference Design 6
