8 Port Industrial Ethernet Switches Full Duplex Half Duplex 100mbps
Our Product Introduction
for more products please visit us on connector-industrial.com
Basic Information
Place of Origin:
Guangdong, China
Brand Name:
KRONZ
Certification:
CE
Model Number:
UES-08TY
Minimum Order Quantity:
10 pieces
Price:
Negotiable
Packaging Details:
Paper box packing
Delivery Time:
5-8 working days
Payment Terms:
T/T, Western Union, MoneyGram
Supply Ability:
100000 pieces per month
8 Port Industrial Ethernet Switches Full Duplex Half Duplex 100mbps
Product Specification
Communication Mode:
Full-Duplex & Half-Duplex
Ports:
8
Transmission Rate:
10/100Mbps
Function:
POE
Switch Capacity:
100mbps
Condition:
New
Ethernet Port:
8*RJ45 Ports
Power Voltage:
DC12-52V
Highlight:

8 Port Industrial Ethernet Switches 100mbps

,

Full Duplex Industrial Ethernet Switches

,

Half Duplex Industrial Ethernet Switches

8 Port Industrial Ethernet Switches Full Duplex Half Duplex 100mbps
Our Product Introduction
for more products please visit us on connector-industrial.com
Product Description

Industrial Ethernet Switches Full-Duplex Half-Duplex Communication 8 Port 100mbps



Product Description

UES-08TY is an unmanaged industrial Ethernet switch, supporting 8-port 10BaseT/100BaseTX . The UE-08TC switch supports a wide
operating temperature range from -40°C to 85°C can satisfy most of various harsh environments, and can be installed in control cabinets in
a space-saving way. Features such as DIN rail mounting, wide temperature operation, IP40 protection rating, and LED indicators make the
UES-08TY a plug-and-play device, providing reliable and convenient solutions for customers in their network needs.



Product Feature:

■ Ensure reliable data transmission and long working life

■ Transfer speed automatically adjustable via Auto-Negotiation function

■ Half Duplex/Full Duplex,Auto-crossing
■ Store-and-forward switching mode,supporting multiple protocols
■ High quality and reliability, MTBF:300,000 hours
■ Din rail with IP40 metal mechanism


Technical Data

Products description
8-port unmanaged Industrial-grade Ethernet switch
Port description

8 x RJ45 female 8 pin,8-port 10/100Base-T(X)
MDI/MDI-X auto-crossover,auto-negotiation
Network protocol

IEEE 802.3 10BaseT
IEEE 802.3u 100Base TX/FX
IEEE 802.3x - flow control
Environmental conditions
Operating temperature
-40~85°C(-40~185°F)
Storage temperature
-40~75°C(-40~167°F)
Relative humidity
5% ～ 95%( no condensation)
MTBF 300,000 hours
Power
Input voltage
DC12-52V
Connection terminal
 Removable screw terminals block
Overload-current
 Present
Reverse-polarity protection  Present
Mechanical characteristics
Housing
Metal
Protection rating
IP40
Mounting DIN-rail,wall
Cooling method
Natural cooling, fanless
Weight
0.58Kg
Size
100x 85x 40.2mm (L x W x H)
Standards:

EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS :IEC(EN)61000-4-2(ESD) :±8kV contact discharge, ±12kV airdischarge
IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz)
IEC(EN)61000-4-4(EFT) : Data line : ±4kV CM//±2kV DM ;
IEC(EN)61000-4-5(Surge) : Data line : ±4kV CM//±2kV DM ;
IEC(EN)61000-4-6(Conducted Immunity) :3V(10kHz~150kHz), 10V(150kHz~80MHz)
IEC(EN)61000-4-16(Common Mode Conducted ) : 30V cont. 300V,1s
IEC(EN )61000-4-8
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Performance
Packet buffer menory
448
Forwarding rate
148810pps
Forwarding mode
store-and-forward
MAC address
2K
Bandwidth
1.6G
LED indicator
Power indicator
PWR
Interface
Link status

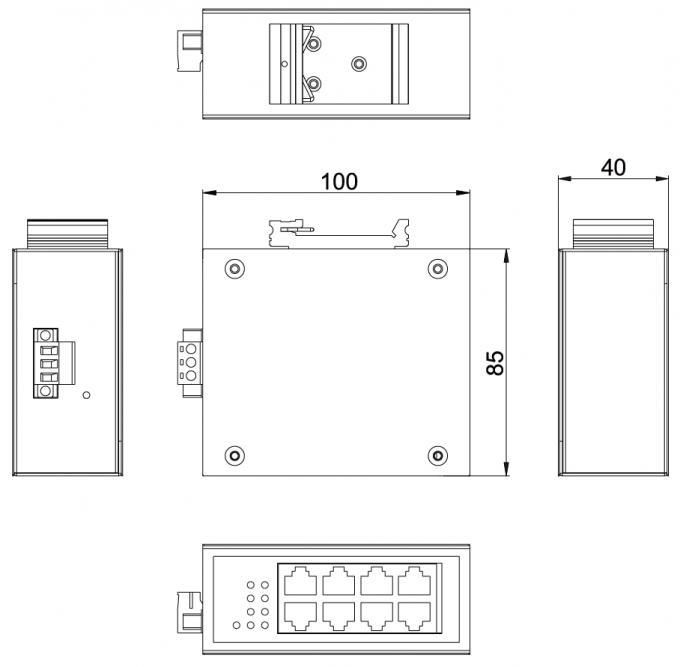

Mechanical Dimension Drawing
